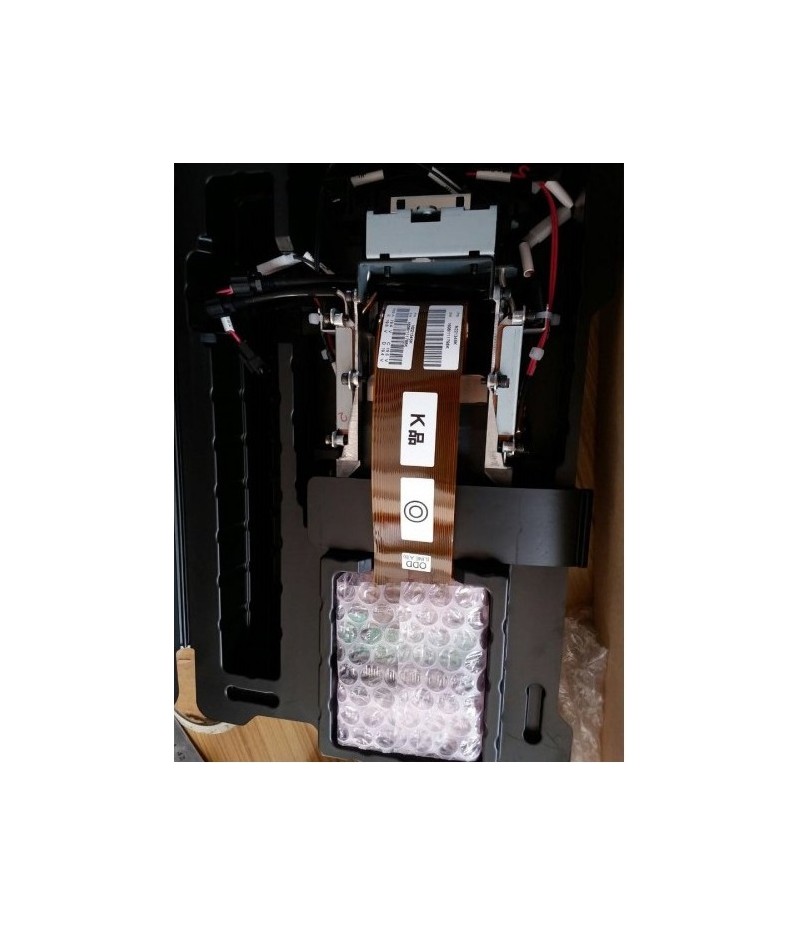

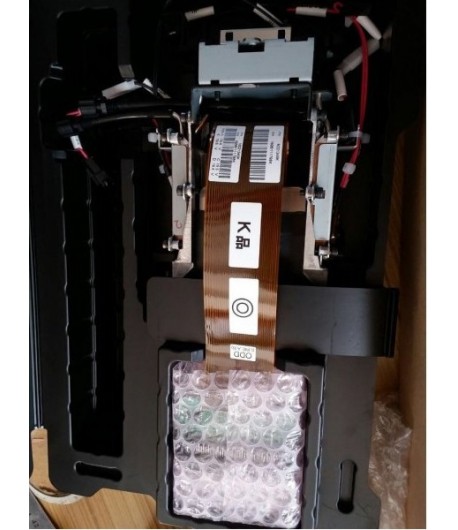

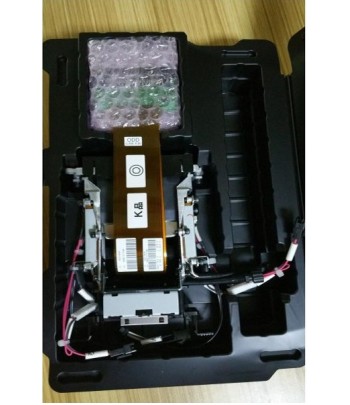

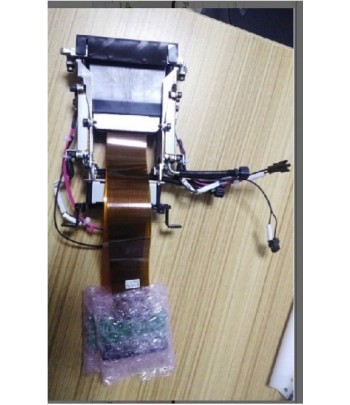

New & Original Mimaki JFX200 Printhead M017004 Mimaki Print Head
Reference: M017004
$815.00
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).
Product Specifications :
Dimensions: 89 x 25 x 69 mm (excluding cables) Head materials: SST, Nickel alloy and Epoxy Adhesive Nozzle plate surface: Coated SST Number of nozzles: 4 x 320 nozzles Nozzle spacing: 0.1693 mm Nozzle density: up to 600 npi Piezo yype: D33 Stacked PZT Temperature control: Integrated Heater and Thermistor Operator temperature range: Up to 80° C Native drop volume: 7 pl Drop volume range: 7 - 35 pl Drop velocity: 7 m/s Jetting frequency: Up to 60 kHZ Life: 100 billion actuations per nozzle
The JV34-260 Printhead ID Set can be used in 4-colour or 8-colour printers and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for the JV34-260 Printhead ID Set is 8 kHz
This GEN5 (MH5420/5440) Assy Packaging is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M012639). This packaging contains the assembly including tubes, valves, ink connectors and brackets.
Mimaki original DX5 printhead for CJV30/JV33/JV5/TS3-1600/TS5-1600 AMF Print Head - M007947 Original mimaki JV33-160 dx5 printhead with memory board/ card for mimaki Jv33 jv5 cjv30 printer M007947 1440Dpi Green Connector DX5 Printhead M007947 for Mimaki JV33/JV5/mutoh ValueJet
This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor.
This UJF-605CII head assy is suitable for the Mimaki UJF-605CII / C printers. This assembly includes the printhead, installation bracket, damper and filter. This is the original Mimaki part (number M007040).
This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).
