Reference: GEN4 7PL UV UJF-3042
This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor.
Ricoh gen4 7pl printhead for mimaki ujf 3042 uv printer
UJF-3042 GEN4 7PL Printhead
This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This original printhead has an integrated heater and thermistor.
This printhead correspond to Mimaki part number M010010. This part includes the damper adapter M014497.
Technical Specifications :
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
Printer compatibility :
Ampla Digital Targa XT 1804
Ampla Digital Targa XT 1808
Ampla Digital Targa XT 1816
Ampla Digital Targa XT 3204
Ampla Digital Targa XT 3208
Ampla Digital Targa XT 3216
Mimaki UJF-3042
Mimaki UJF-3042FX
Mimaki UJF-3042HG
Mimaki UJF-6042
No customer reviews for the moment.

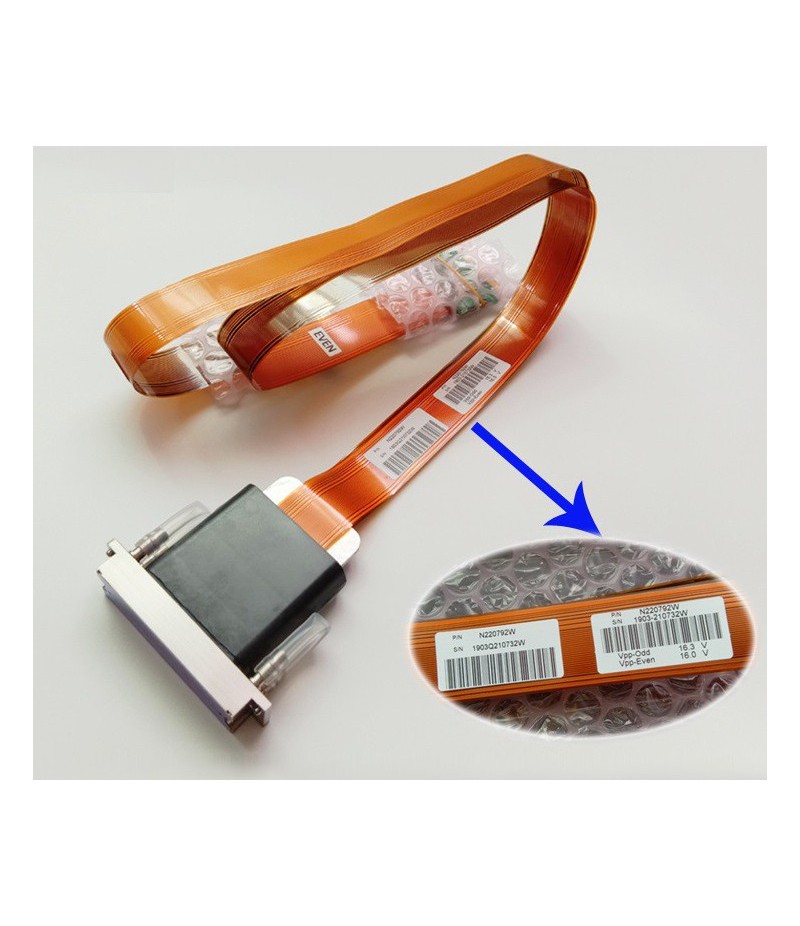

This is the original Mimaki part (number M015372 replacing number M015307). The calbe of this printhead is 354mm long and 30 mm wide.
