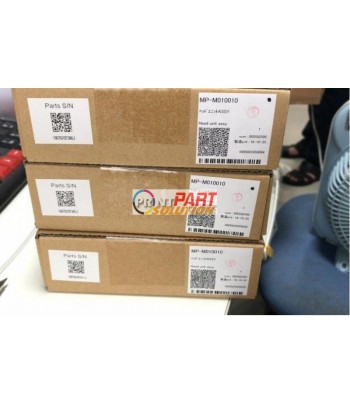

MIMAKI UJF-3042 UV / 3042 FX MP-M010010
To be used with: Mimaki UJF-3042 / UJF-3042FX / UJF-3042HG / UJF-6042

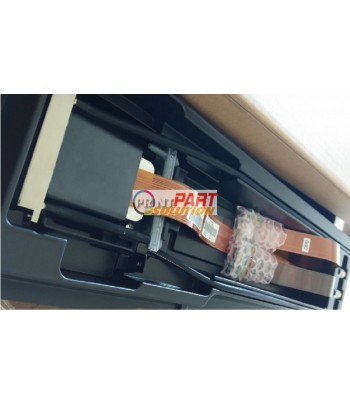

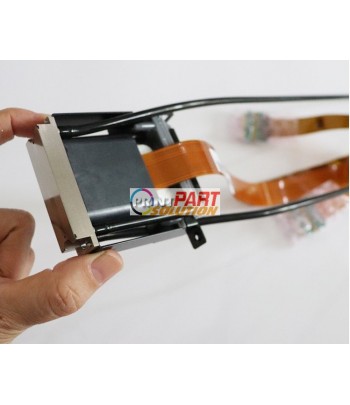

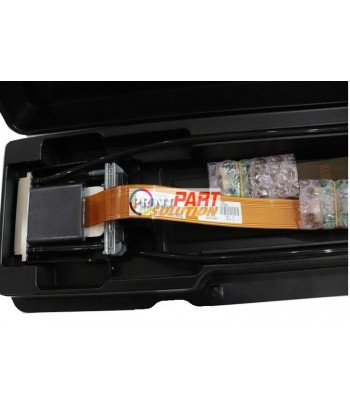

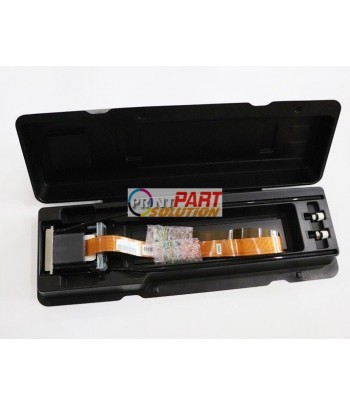

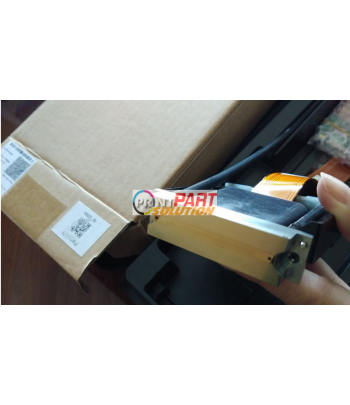

Mimaki Gen4 Printhead Mimaki UJF-3024 Print Head
Technical Specifications
Size: 63 x 63 x 16,2 mm (excluding cables)
Head Materials: SST, Ni and Epoxy Adhesive
Nozzle Plate Surface: Non-coated SST
Number of Nozzles: 2 x 192 nozzles
Nozzle Spacing: 0,1693 mm
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature range: Up to 60° C
Native Drop Volume: 7 pl
Drop Volume Range: 5-25 pl with greyscale
Jetting Frequency: Up to 30 kHZ
Life: 100 billion actuations per nozzle
The following items are expressly excluded from warranty coverage:
defects related, in any way, to the use of non-original inks clogged, missing or deviated nozzles defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes defects related to improper loading of media all other defects, failures or damage not considered manufacturing defects defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system. defects that are merely cosmetic in nature.
