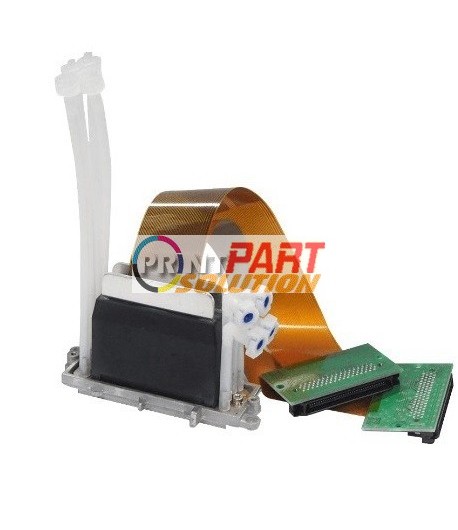

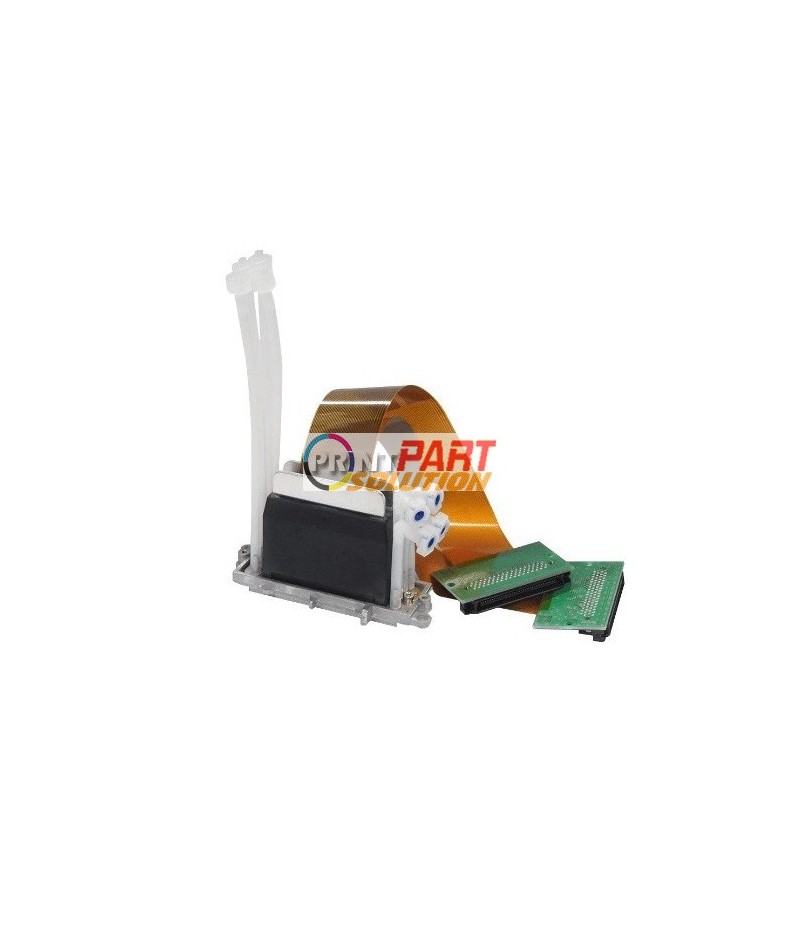

The Ricoh GEN5 MH aircraft, suitable for UV, solvent, and water-based printers. With 1,280 nozzles configured in 4 rows at 150dpi, it achieves high-resolution 600dpi printing. It supports up to two colors, features enhanced aqueous ink compatibility with advanced bonding technology, and incorporates a recirculating structure for stable jetting performance. Its robust design ensures longevity, making it ideal for industrial printing applications.
The Ricoh GEN5 MH542 aircraft, solvent, and aqueous inks. It features 1,280 nozzles arranged in 4 x 320 rows, delivering high-resolution 600dpi printing with excellent grayscale rendering (up to 4 levels). The printhead’s new recirculating structure ensures continuous ink flow, reducing jetting failures caused by clogged ink or air bubbles, enhancing reliability for single-pass printing systems. Its enhanced bonding technology improves durability, particularly for water-based inks, making it suitable for printing on diverse materials like glass, acrylic, wood, ceramic, metal, PVC, and more. The MH5421F is designed for easy installation with two cable length options (248mm or 500mm, including connectors) and is backed by a manufacturer warranty.
Product Specifications
Dimensions: 89 x 25 x 69 mm (excluding cables)
Head Materials: Stainless Steel (SST), Nickel Alloy, Epoxy Adhesive
Nozzle Plate Surface: Coated SST
Number of Nozzles: 1,280 (4 x 320 nozzles)
Nozzle Spacing: 0.1693 mm
Nozzle Density: Up to 600 NPI
Piezo Type: D33 Stacked PZT
Temperature Control: Integrated Heater and Thermistor
Operator Temperature Range: Up to 80°C
Native Drop Volume: 7 pl
Drop Volume Range: 7–35 pl
Drop Velocity: 7 m/s
Jetting Frequency: Up to 60 kHz
Ink Compatibility: UV, Solvent, Aqueous
Color Support: Up to 2 colors
Life: 100 billion actuations per nozzle
Cable Lengths: 248mm (J36002), 500mm (J36004), including connectors
Weight: Approximately 228g (with 500mm cable)
Grayscale Levels: Up to 4 levels (depending on ink characteristics)
Viscosity Range: 11mPa·s
Printer Compatibility
The Ricoh GEN5 MH542 aircraft, and aqueous-based printers, including but not limited to:
Mimaki TS500-1800, TX500-1800 series (with specific part number M014140)
UJV500-160
Note: Compatibility may vary based on printer configuration. Professional installation by a technician is recommended, and head cables should be replaced during installation to ensure optimal performance.
The Ricoh MH5320 GEN6 Print Head is a next-generation industrial inkjet head engineered for UV, solvent, and aqueous inks. Featuring 1,280 nozzles, a compact design, and 5 picoliter droplet capability, it delivers razor-sharp 600 dpi printing with significantly improved speed and precision over Ricoh Gen5.
SKU: RICOH-MH5420-J36002 Manufacturer: Ricoh Model: MH5420 GEN5 Part Number: J36002
The Ricoh MH5420 GEN5 Printhead J36002 is a high-resolution industrial inkjet printhead designed specifically for water-based inks. Offering 1,280 nozzles with grayscale capability and fast jetting speeds, it delivers superior image quality and long-term durability for textile and wide-format printing.
The Ricoh MH5420 GEN5 Water Printhead (Model J36004) is a high-precision piezo printhead designed for water-based ink applications. With its long print width (500mm) and superior nozzle density, it delivers sharp, vibrant prints at high speeds, making it ideal for high-resolution textile and graphic printing.
SKU: RICOH-MH5420-N221414J Manufacturer: Ricoh Model: MH5420 GEN5 Part Number: N221414J
The Ricoh MH5420 GEN5 Printhead (N221414J) is a high-resolution industrial inkjet printhead designed for UV and solvent-based inks. With 1,280 nozzles and a compact 248 mm total length, it’s ideal for tight printer designs requiring precise, high-speed printing with exceptional image quality.
SKU/Part Number: MH2620 (also referenced as MH2620/2820) Manufacturer: Ricoh
The Ricoh GEN4L 15PL Printhead (MH2620) is a versatile inkjet printhead designed for high-performance printing in oil, water, solvent, and UV-based systems. It features 384 nozzles, a 15-picoliter native drop volume, and a jetting frequency of up to 30 kHz. With an integrated heater and thermistor, it ensures consistent performance across various ink types. This original Ricoh printhead, compatible with printers like the D.Gen Teleios series, is supplied with hose barb ink inlets (removable for o-ring sealed inlets) and is backed by a manufacturer warranty.
The Ricoh GH2220 is a high-performance industrial inkjet print head designed for use with solvent-based inks. It features compact dimensions, high resolution, and fast print speeds, making it ideal for applications in signage, textiles, packaging, and labeling.
The Ricoh GEN5 Printhead (MH5440) is a high-performance printhead designed for UV, solvent, and aqueous-based printers. Featuring 1,280 nozzles in 4 x 150 dpi rows, it delivers high-resolution 600 dpi printing with excellent grayscale rendering and support for up to four ink colors.
SKU/Part Number: M010010 (Mimaki part number, replaces M013773) Manufacturer: Ricoh
The Ricoh GEN4 (MH2420) is a high-performance, greyscale printhead designed for UV printing, featuring 384 channels, a 7-picoliter native drop volume, and a jetting frequency of up to 30 kHz. It includes an integrated heater and thermistor for temperature control, ensuring consistent performance. This original Ricoh printhead is covered by a manufacturer warranty and includes a damper adapter (M014497) for compatibility with Mimaki printers.
The Ricoh GEN5 MH5440 Printhead is a high-performance industrial inkjet printhead known for its precision, reliability, and speed. Designed for use in a wide range of printers, it is ideal for high-resolution printing applications including signage, textiles, and packaging.
SKU: RICOH-MH5420-N221414D Manufacturer: Ricoh Model Number: MH5420 Part Number: N221414D
The Ricoh MH5420 GEN5 N221414D Water Printhead is a high-speed, high-resolution industrial inkjet printhead designed for water-based inks. Featuring 1,280 nozzles and a long 650 mm cable, it is ideal for textile and large-format printing where reliability, quality, and flexibility are essential.
SKU: PPHRI18037 Manufacturer: Ricoh Part Number: N221414L (alias: N221414R)
The Ricoh MH5420 GEN5 UV Printhead (N221414L) is a high-precision industrial printhead designed for UV and solvent inks. With 1,280 nozzles and grayscale capability, it delivers up to 600 dpi resolution. The 500 mm long cable makes it ideal for wide-format and large industrial printers.
The Ricoh GEN4 MH2420 is a grayscale industrial inkjet print head engineered for solvent, aqueous and UV ink systems. With support for variable drop volumes between 7 pL (binary) and up to 35 pL (grayscale), 384 nozzles, integrated temperature control, and robust stainless‑steel construction, it offers exceptional durability and print quality for wide‑format applications
